1 5
Barcode: 4711377260794

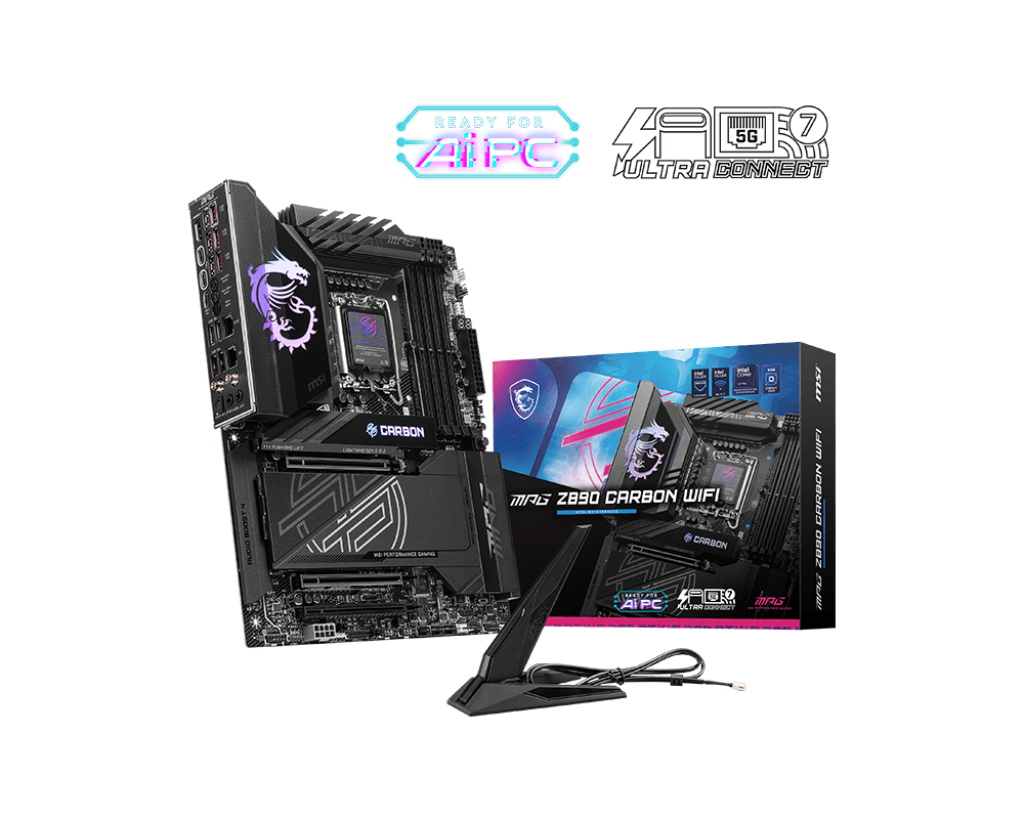

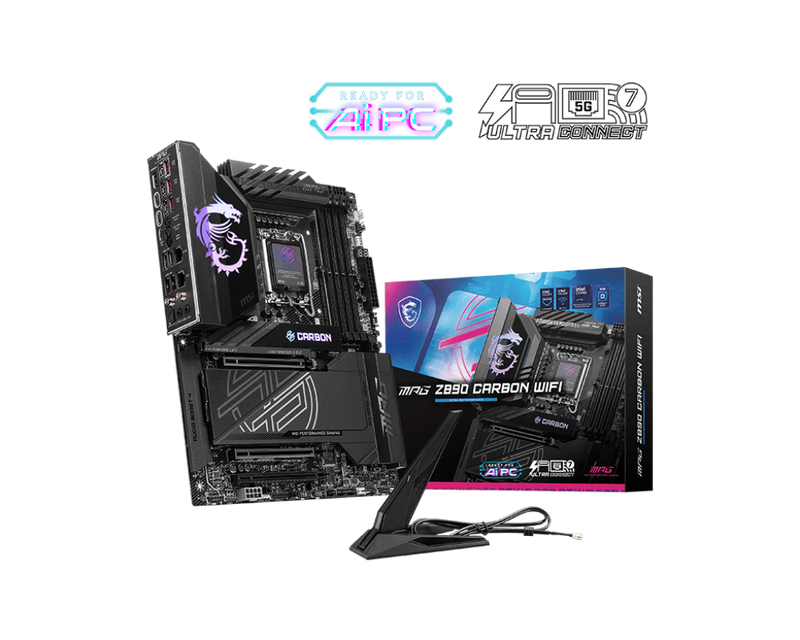

MPG Z890 CARBON WIFI

£329.99
VAT included
Delivery date
Estimated delivery: –
Warranty
3-year warranty

Incluye regalo

  • INTEL Z890
  • ATX
  • Max Memory:256GB
  • LGA 1851
  • 4 slots
  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, up to 9200+ MT/s (OC)
  • Ultra Performance: Direct 20+1+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
  • Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
Document

Perform in Style

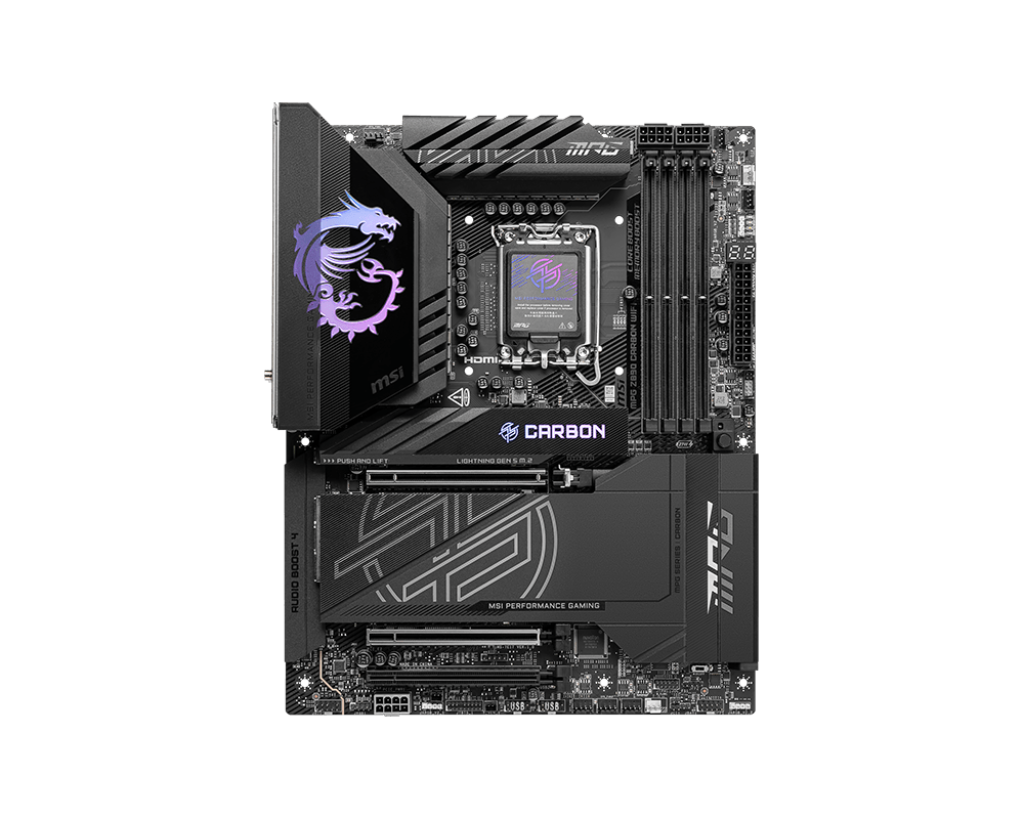

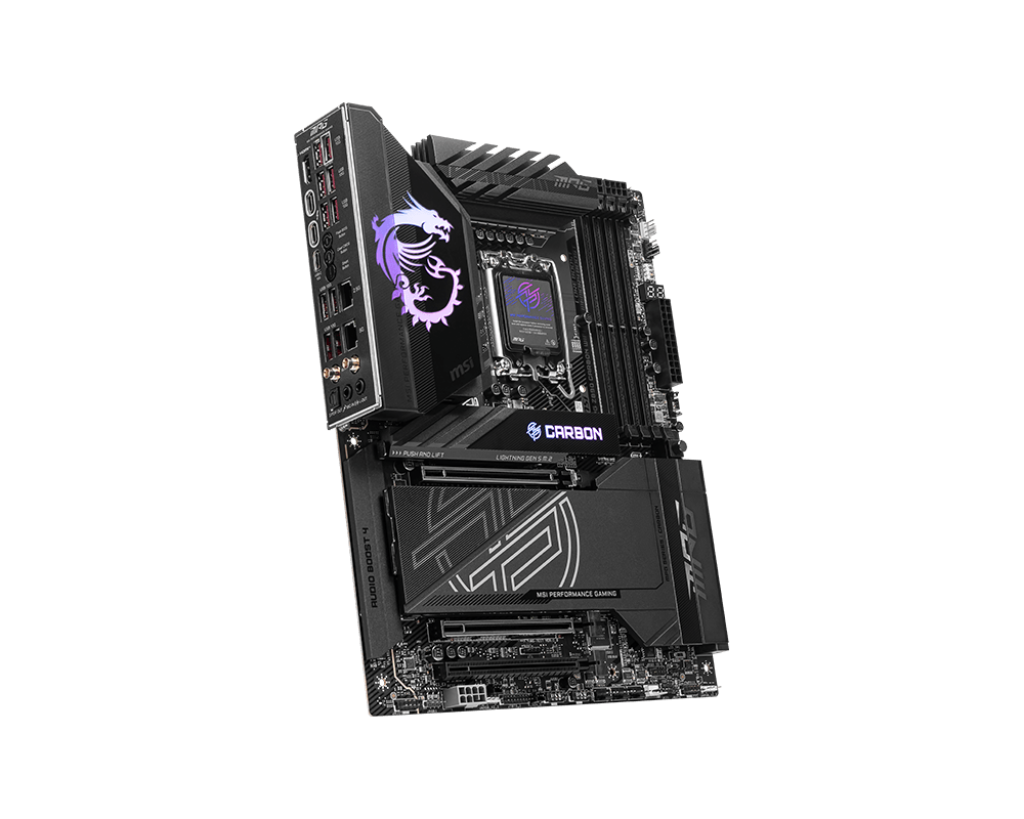

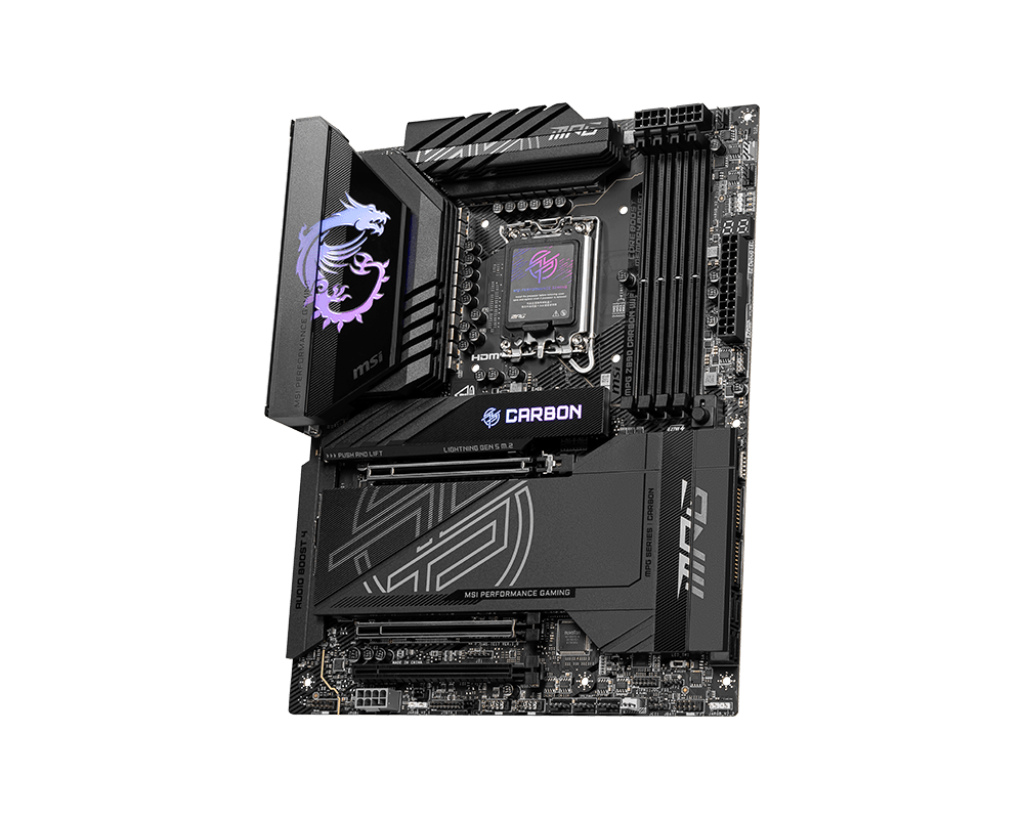

The MPG Z890 CARBON WIFI is a gaming oriented ATX motherboard with Direct 20 phases CPU power, constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Thunderbolt 4, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.

Supports Intel Core Ultra Processors (Series 2)

The MPG Z890 CARBON WIFI motherboard supports Intel Core Ultra Processors (Series 2).

  • Form Factor: ATX
  • Socket Type: LGA 1851
  • Chipset: Intel Z890

Ultra Power+ - Direct 20 phases VRM Power with 110A Smart Power Stage

With exclusive Core Boost technology and EZ OC Tuning functions, the MPG Z890 CARBON WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

  • Digital PWM IC
  • 20-Phase direct CPU power (110A / SPS)
  • 1-Phase SA Power
  • 1-Phase GT Power
  • 1-Phase VNNAON Power

Frozr Design

Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (9200+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 9200+ MT/s, supports Intel XMP.

Fortified PCIe 5.0 x16 Slot

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.

  • 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release)
  • 1 x PCIe 4.0/3.0 x16 slot*

*Supports x16/x0/x4, x8/x8/x4, x8/x4+x4/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The MPG Z890 CARBON WIFI motherboard features MSI's M.2 slots:

1 x Gen5 x4 128Gbps slot (with magnetic double-sided M.2 Shield Frozr)

4 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.

Ultra Connect

5G LAN + 2.5G LAN: An Intel Killer 5G LAN & Intel 2.5G LAN controller delivers a premium network gaming experience.

Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K@60Hz display support.*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 3x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 supports BIOS adjustment to x8+x4+x4*
• PCI_E2 supports BIOS adjustment to x4+x4*
Audio Realtek® ALC1220P Codec
7.1-Channel USB High Defination Audio
Supports S/PDIF output
Storage 5x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G (Qty)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
Onboard Thunderbolt 2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
10x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN 1x Intel® Killer™ E5000B 5G LAN
1x Intel® I226V 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x PUMP_SYS Fan
5x System Fan
1x ARGB+FAN+USB2.0 Header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Digit Debug LED

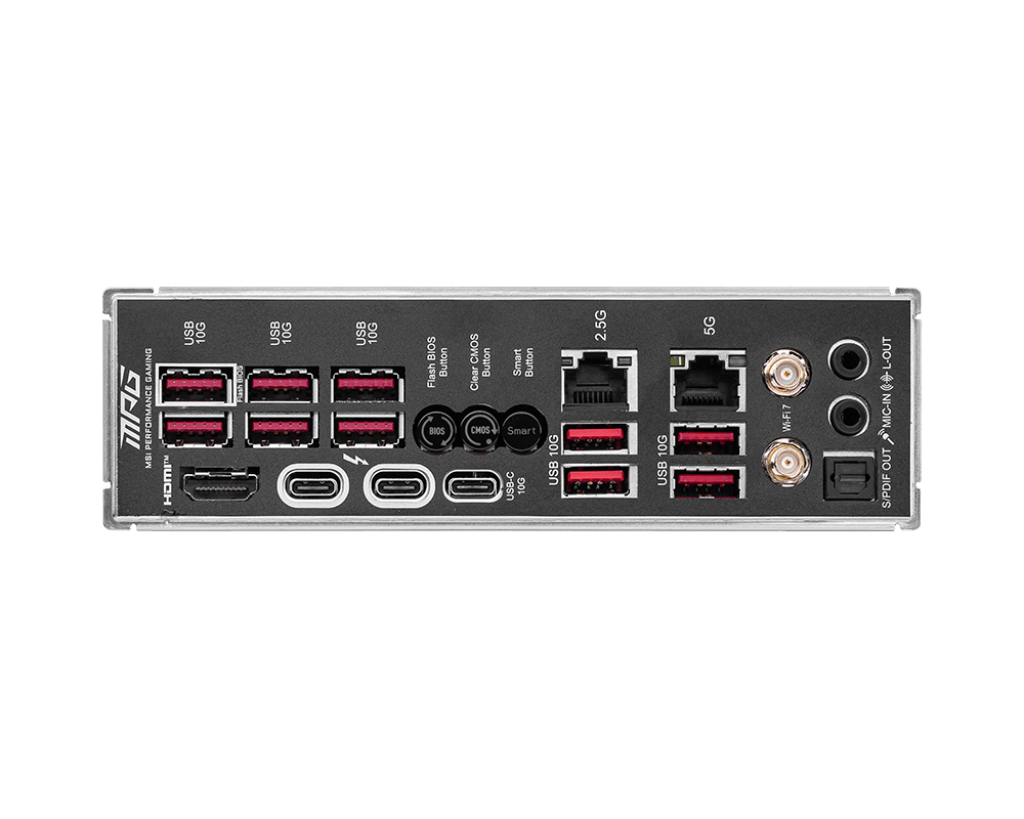

BACK PANEL PORTS
  1. USB 10Gbps Type-A
  2. Flash BIOS Button
  3. Clear CMOS Button
  4. Smart Button
  5. 2.5G LAN
  6. 5G LAN
  7. Audio Connectors
  8. HDMI™
  9. Thunderbolt 4
  10. USB 10Gbps Type-C
  11. USB 10Gbps Type-A
  12. Wi-Fi / Bluetooth
  13. Optical S/PDIF Out
OPERATING SYSTEM Support for Windows® 11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
