The coolant block is separated into hot & cold chambers, which helps preserve the temperature difference (ΔT) for faster cooling.
A three-phase motor at the pump's core eliminates motor resonance to minimize vibration for improved durability.
Incluye regalo
- 3 fans
- 360 mm
- 25.5~75.04 CFM
- 20 dBA

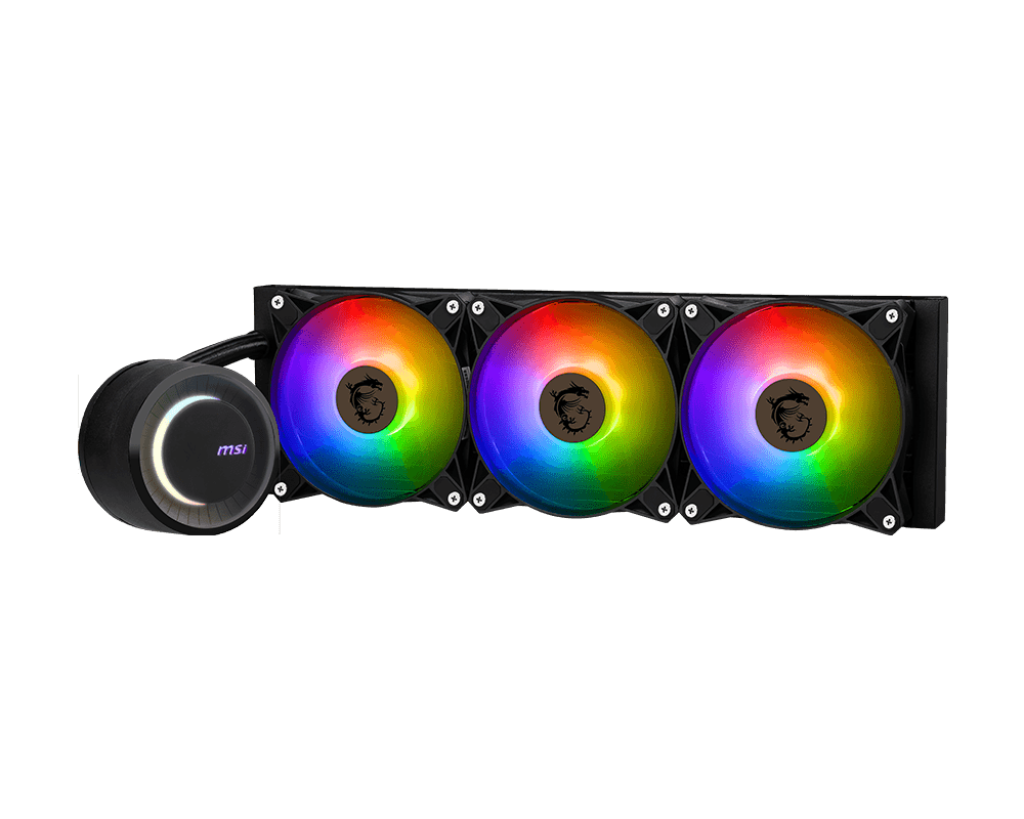

MAG CORELIQUID E360
- The enlarged copper base surface area helps to achieve ultimate heat exchange with the latest CPU generation.
- Maximize micro-channels to dissipate heat efficiently
- Rotatable water block cap for 270-degree.
- ARGB fan can change the lighting by MSI center.
- Enhanced fan performance to dissipate heat quickly.
- Durable three phase motor of the pump generates minimal vibrations for long-lasting operation.
- Spilt pathway through the radiator rapidly dissipates heat.
The Colder, The Better
The MAG CORELIQUID E Series AIO CPU liquid coolers are inspired by a solar eclipse, presented with Mystic Light ARGB lighting. This innovative product combines advanced cooling technology with a striking visual design.
Dual-Chamber Design
Full CPU Coverage
With multi-die CPU layouts, notably AM5 processors, the hotspot can sometimes be off center.
In response to this trend, the MAG CORELIQUID E-Series has an enlarged cold plate area.
MSI Center Support
MSI Center software unlocks multiple cooling profiles as well as customizable fan curve settings through MSI motherboard:
- Silent, Game Mode, and Balanced profiles
- Customizable radiator fan speed curves
- Customizable pump speed curves
Split-Flow Radiator
The aluminum radiator employs a 12-channel, split-flow design that divides incoming heated water and outgoing cooled water into two 6-channel paths. This improves thermal dissipation between coolant and fan-cooled air.
Tubing comprises of multi-layered netted plastic concealed beneath reinforced mesh sheathing to ensure that coolant stays inside the closed-loop system at all times.
Enhanced Micro-Channels
The internal contact between the coolant and the copper cold plate features more micro-channels with deeper profiles.
These upgrades significantly increase the internal surface area, which in turn improves efficiency at the heart of the system.
Rotatable Eclipse Blockhead
Inspired by the solar eclipse, the manually rotatable ARGB blockhead with MSI logo (up to 270°) can be aligned with any system orientation.
The ARGB blockhead & fan lighting effects can customized through the Mystic Light utility within MSI Center software.*
*Requires 5V ARGB MSI motherboard header (3-pin)
Fan Construction
Fluid Dynamic Bearing (FDB) fans are widely recognized for their exceptional efficiency & durability, making them the premium choice for liquid cooling solutions.
The fan blades are made of high-purity acrylic for vivid light diffusion.
The MAG CORELIQUID E360 also includes an optional low-noise adapter cable that limits fan speeds for quieter performance.
AMD & Intel CPU Socket Compatible
Supported Intel CPU socket types: LGA 1700, 1200, 1156, 1155, 1151, 1150
Supported AMD CPU socket types:
- AM5, AM4
- TR4, sTRX4
Includes thermal paste, mounting screws and cables.
| Number of Fans | 3 |
| Fan Dimensions | 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches |
| Fan Power Consumption | 3W(Max:4.8W) |
| Fan Rated Current | 0.25A(Max:0.4A) |
| Fan Life Expectancy | 50,000 hrs@40℃ |
| Fan Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Air Flow | 25.5~75.04 CFM |
| Fan Lighting | ARGB |
| Water Cooling Tube Material | Black Rubber |
| PWM Mode | YES |
| Fan Cable Length (5V ARGB / PWM cable) | 550 / 500 mm; 21.65 / 19.69 inches |
| Radiator Material | Aluminum |
| Radiator Dimensions | 394 x 119.2 x 27mm / 15.51 x 4.69 x 1.06 inches |
| Pump Life Expectancy | 50,000 hours in typical use |
| Fan Connector | 4-Pin |
| Pump Noise Level | 20 dBA (avg.) |
| Pump Speed | 3000 RPM ± 10% |
| Pump Power Consumption | 3W (Max: 6W) |
| Pump Rated Current | 0.25A (Max: 0.5A) |
| Pump Connector | 4-pin |
| Block Dimensions (WxDxH) | 74.9 x 65.4 x 54.2 mm |
| Intel Socket | LGA 1150/1151/1155/1156/1200/1700/1851 |
| AMD Socket | AM5/AM4/TR4/sTRx4 |
| Accessories | 1 x 1 to 3 Fan PWM cable 1 x Molex 4-Pin to 4-Pin fan cable 1 x low noise adapter cable 1 x Thermal paste |
| Radiator Size | 360 mm |
| Cold Plate Material | Copper |
