Barcode: 4711377087278

MAG A650GL

£69.99
VAT included
Delivery date
Estimated delivery:
Warranty
2-year warranty

Incluye regalo

  • 140 x 150 x 86 mm
  • 650W
  • Yes (Fully Modular)
  • 80 PLUS Gold (up to 90%)

MAG A650GL

  • Full modular design, Flat cables
  • 80 Plus Gold certified for high efficiency
  • Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • 120mm Fluid Dynamic Bearing Fan
  • LLC Full Bridge Topology with DC-DC module design
Document

Overflow with Power

The MAG A650GL power supply can support the NVIDIA® GeForce RTX™ 30/40 and AMD GPUs, this power supply offers 80 PLUS Gold-certified energy efficiency,flat cable and a Fluid Dynamic Bearing (FDB) fan for quiet and stable performance.

80 PLUS Gold

The efficiency of a power supply directly influences system performance and power consumption.

An 80 PLUS Gold certified rating means higher efficiency (up to 90%) and reduces internal thermal loading.

Fully Modular

A fully modular design means that only the connectors required for by the build are used. This significantly reduces cable clutter, simplifies the overall build and improving airflow.

GPU Supported

The MAG A650GL power supply can support the NVIDIA® GeForce RTX™ 30/40 Series and AMD GPUs. Prepared for the highest of requirements, the MAG A650GL power supply can support different and versatile ways of connection according to the power connector design of different graphics cards.

Compact Size

A compact 140 mm-long and 150 mm-wide ATX form factor ensures a comfortable and easy fit in most PC cases. This frees up more space for cable management and airflow to the rest of the system.

Flat Black Cables

The flat black cables allow for improved cable management and provide more space for airflow.

Because of its fully modular design, only the necessary cables need to be plugged in and the rest can be stored in the supplied cable bag.

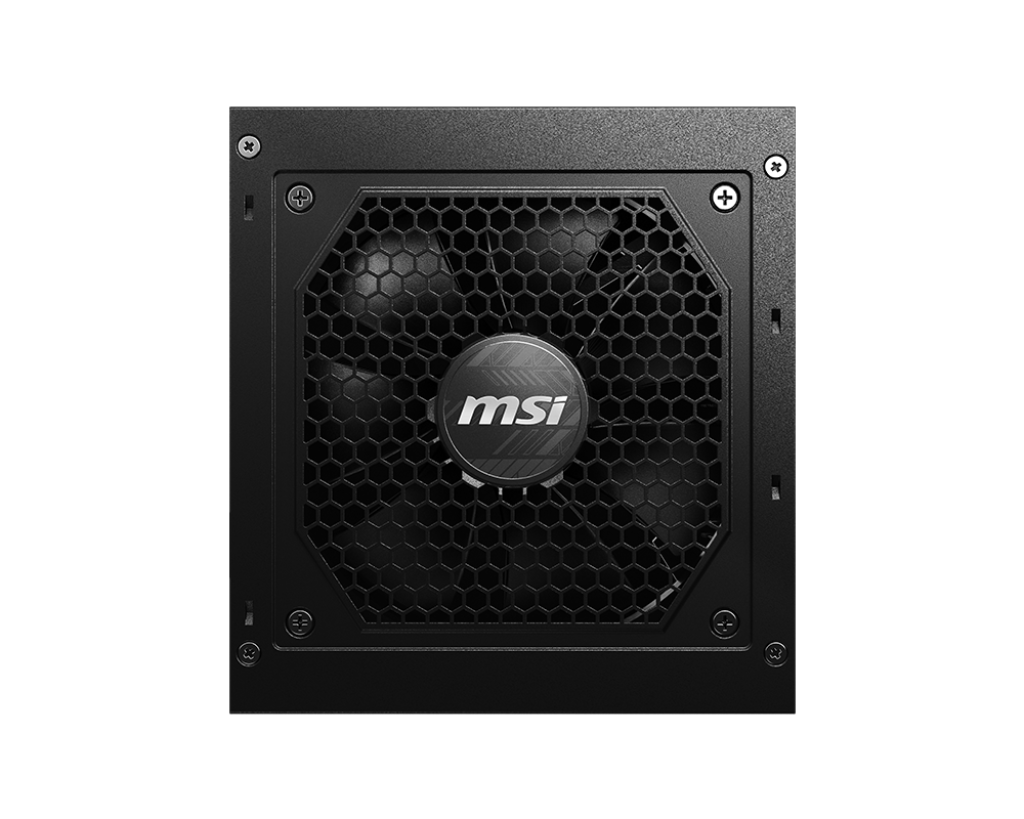

Fluid-Dynamic Bearing Fan

The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

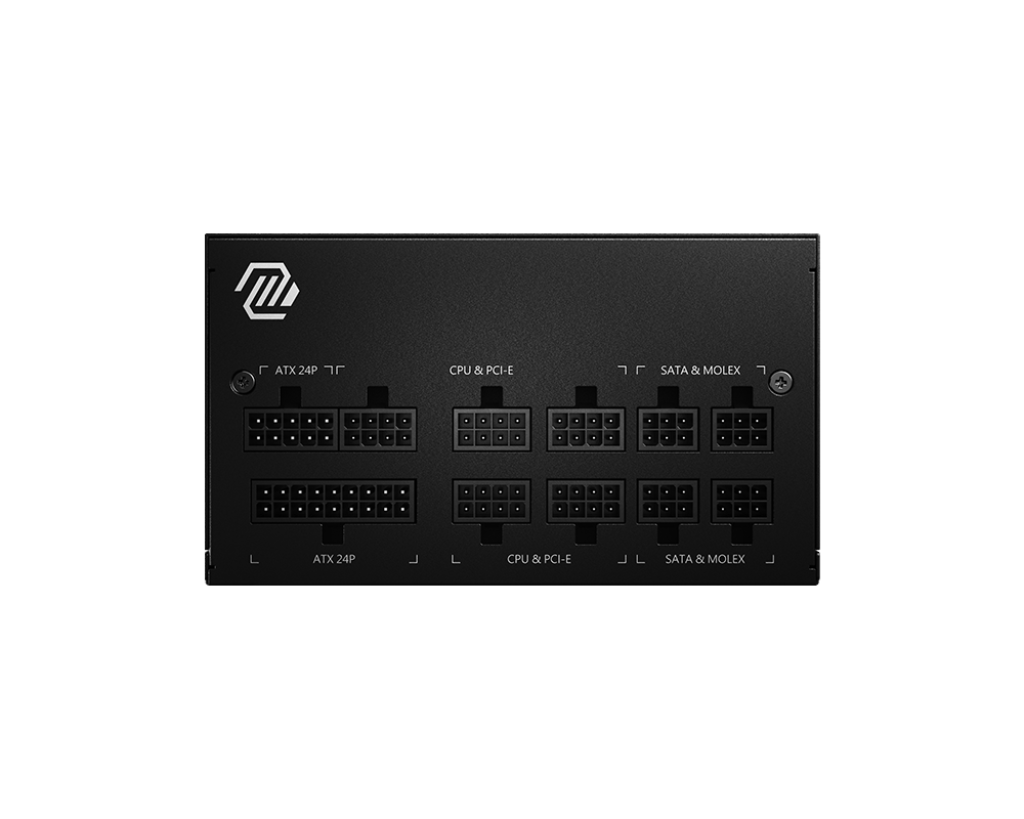

Extensive Connectivity

By offering a wide range of connectivity options, the MAG A850GL PCIE5 power supply guarantees extensive hardware support. Connect multiple hard drives, SSDs, graphics cards and other components to satisfy your needs.

The cable connectors are made of premium copper alloy, which offers better current surge protection than generic phosphor bronze.

Output Specifications

Robust internals support a wide range of AC inputs, while delivering stable output for high performance components.

Power Supply Standard ATX
WEIGHT (CARD) 169g
Efficiency Rating 80 PLUS Gold (up to 90%)
Dimensions 120mm x 120mm x 25.6mm
Modular Yes (full modular)
Fan Bearing Fluid Dynamic Bearing
Bearing Type Hydro-Dynamic Bearing
Rated Speed 500 - 1800 ±15% RPM
Power Watt 650W
Air Flow 19.79 - 71.27 CFM
Input Voltage 100~240 VAC
Input Frequency Range 47-63Hz
Static Air Pressure 0.16 - 2.09 mm-H20
Connector 4-Pin PWM/DC
ATX (24 pin) 1
Life Expectancy MTTF 150,000 Hours (25℃)
EPS (4+4 pin) 2
Fan Size 120 mm
Dimensions (DxWxH) 140 x 150 x 86 mm
PCI-E (6+2 pin) 4
PFC Type Active PFC
SATA (15 pin) 6
Protection OCP / OVP / OPP / OTP / SCP / UVP
MOLEX (4 pin) 3
FDD (4 pin) 1
