Through the native 16-pin (12V-2x6) PCIe connector, the PSU can provide up to 600W of power to a PCIe 5.1 GPU, and includes yellow highlights to help identify a loose connection.

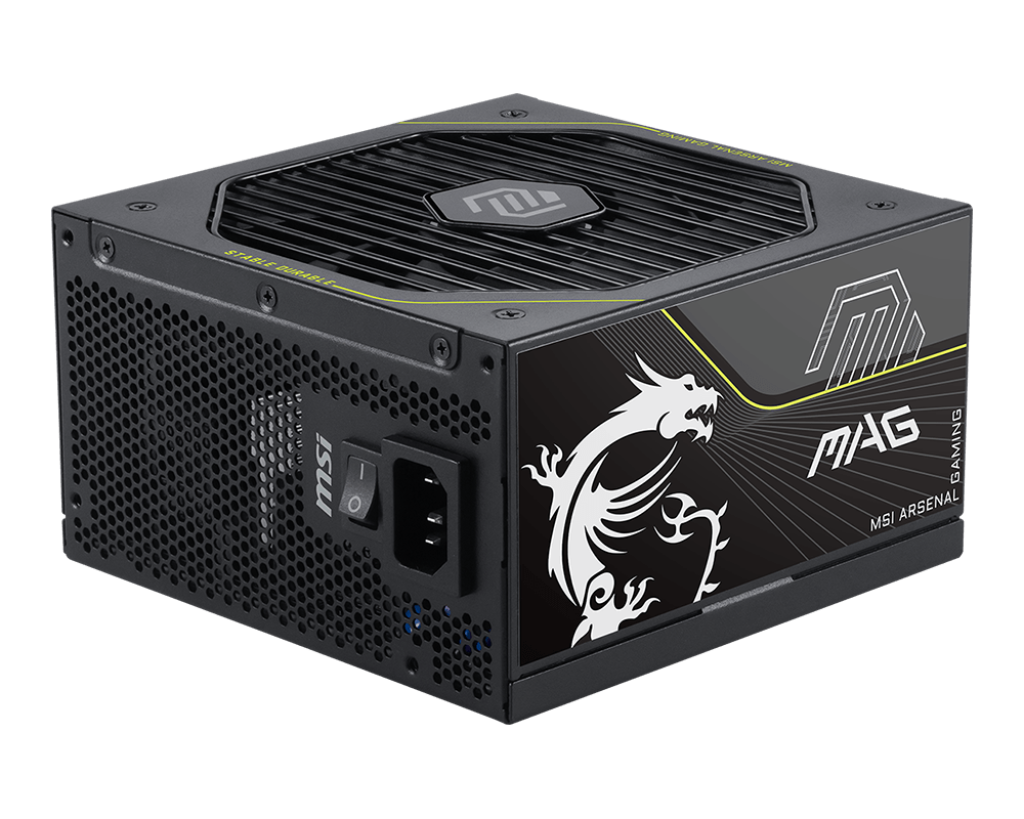

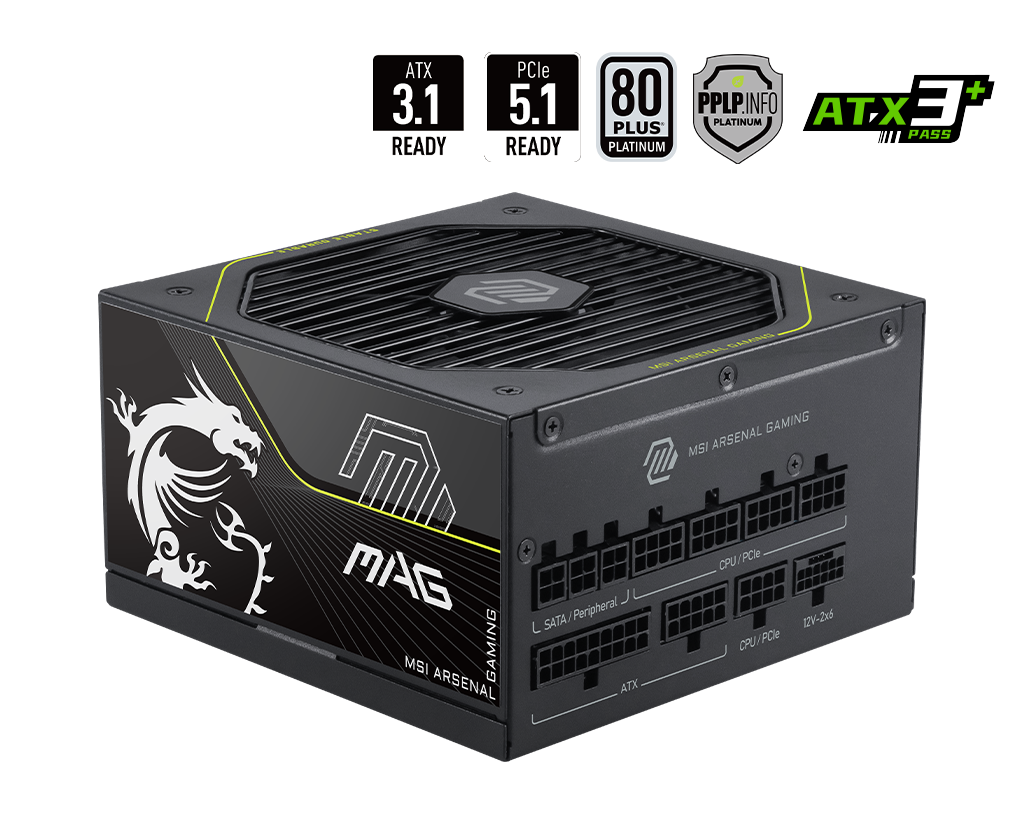

MAG A1200PLS PCIE5
£179.99
Unit price
/
Unavailable
Incluye regalo
- 150 x 150 x 86mm
- 1200W
- Yes (full modular)
- 80 PLUS Platinum (up to 92%)
- Premium protection, GPU Safeguard and Fan Safeguard
- Supports Nvidia® GeForce RTXTM 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Platinum certified
- Optimized the sound level
- Main 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Guardian of Uninterrupted Power
The MAG A1200PLS PCIE5 features GPU Safeguard dedicated overcurrent protection for the 12V-2x6 connector, delivering 1200 watts at Platinum efficiency. Ready for ATX 3.1 available to handle up to 235% total power excursion, it features native 12V-2x6 connectors to support RTX 50 series graphics cards. Cooled by a 135 mm fluid dynamic bearing (FDB) fan for superior performance.
PCIe 5.1 GPU Support (Native 16-pin Connector)
GPU Safeguard
An advanced protection technology for graphics card. It monitors 12V-2x6 connector power currents and provides instant, real-time alerts by buzzer, acting as a 24/7 guard to shield your valuable GPU from unexpected threats.
Platinum Efficiency Certified
An advanced protection technology for graphics card. It monitors 12V-2x6 connector power currents and provides instant, real-time alerts by buzzer, acting as a 24/7 guard to shield your valuable GPU from unexpected threats.

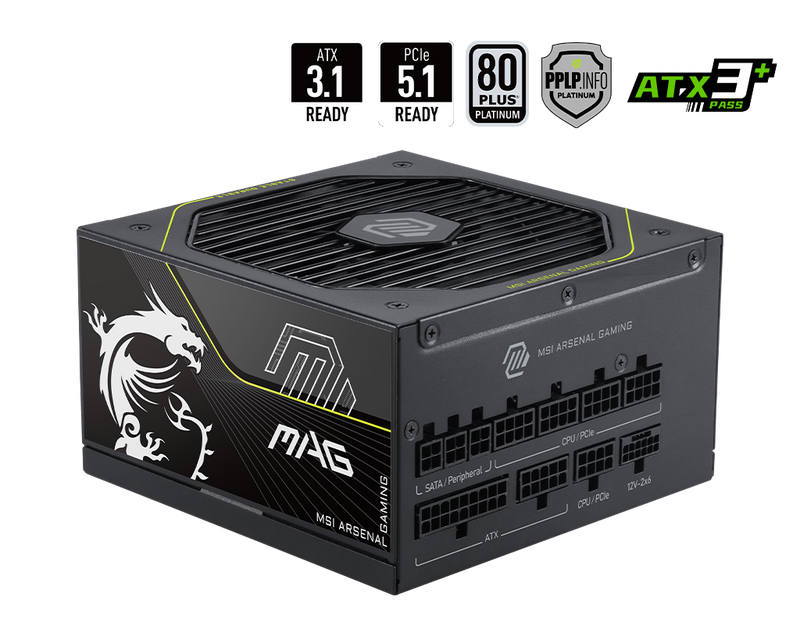

ATX 3.1 Ready
ATX 3.1 ready power supplies can handle up to 235% total power excursions and 3x GPU power excursions.

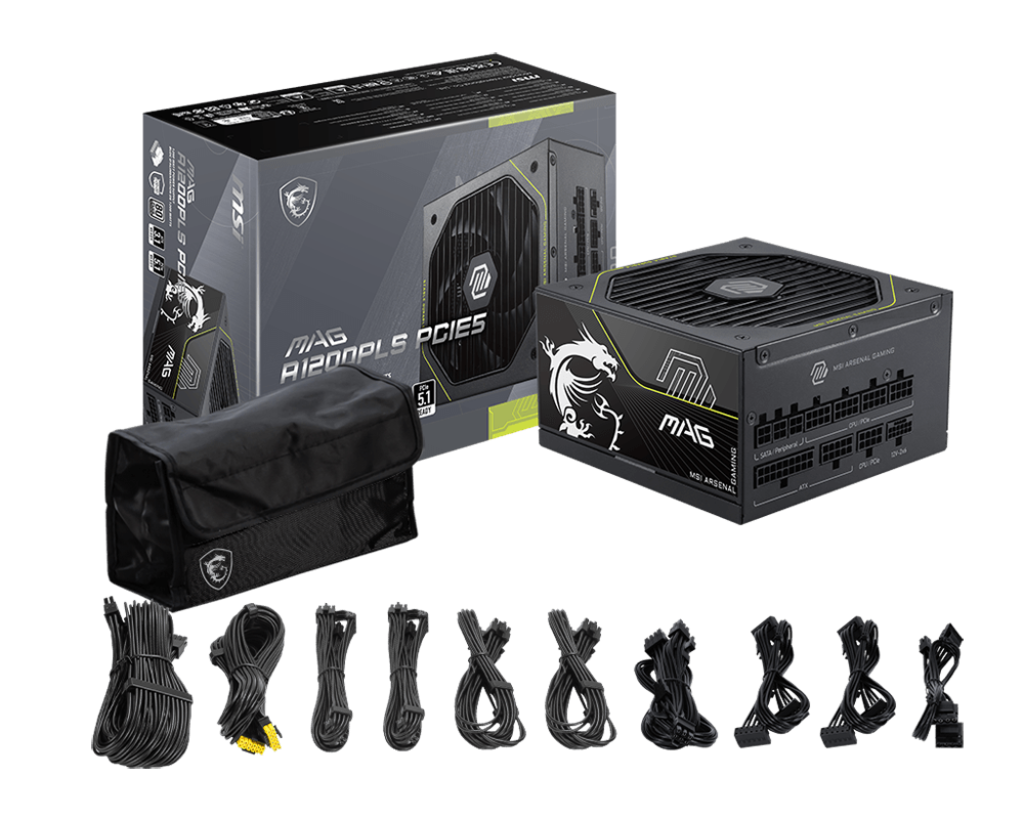

Embossed Jacket Modular Cables
The sleek matt black embossed jacket cables not only elevate its appearance, but also makes cable management significantly easier.
A fully modular design means that only the connectors required by the build are used. This significantly reduces cable clutter, simplifying the overall build and improving airflow.
Low Noise Operation

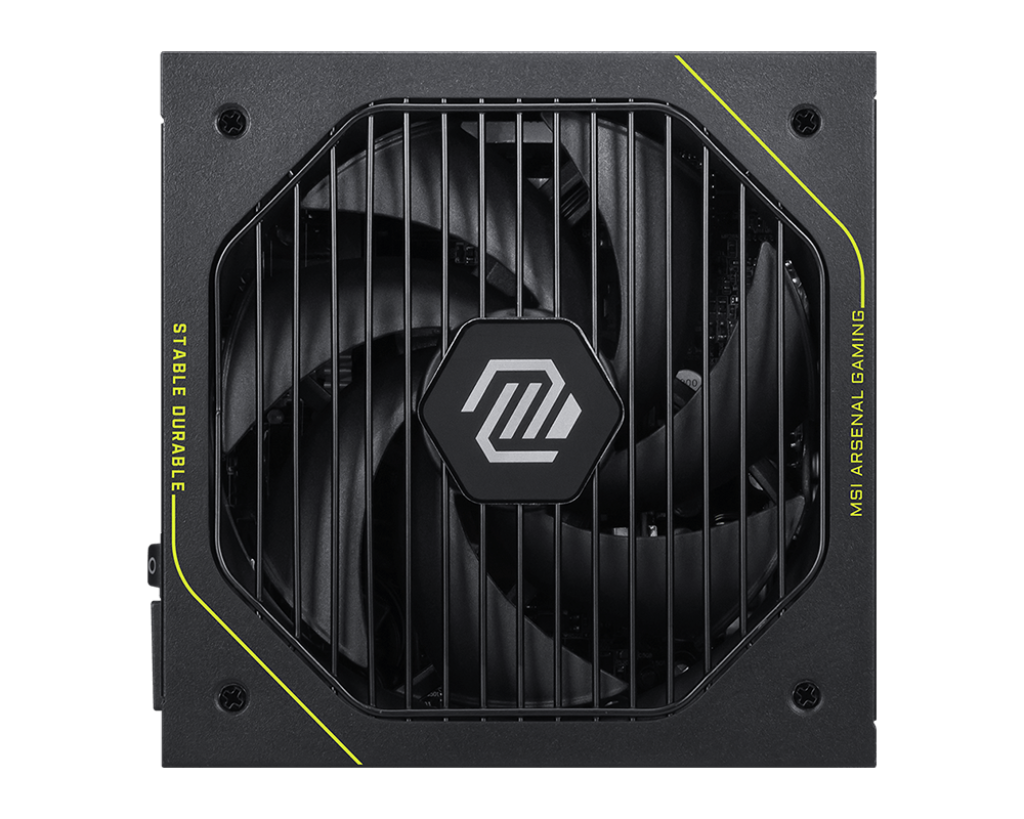

This power supply is designed for quiet operation, its 135 mm Fluid-Dynamic Bearing (FDB) fan offers reliable cooling performance and keeps balance noise levels as low as a peaceful night.
Fan Safeguard
Fan failure protection immediately detects when the fan stops spinning. A buzzer will then sound, alerting you to the problem and preventing the power supply from overheating.

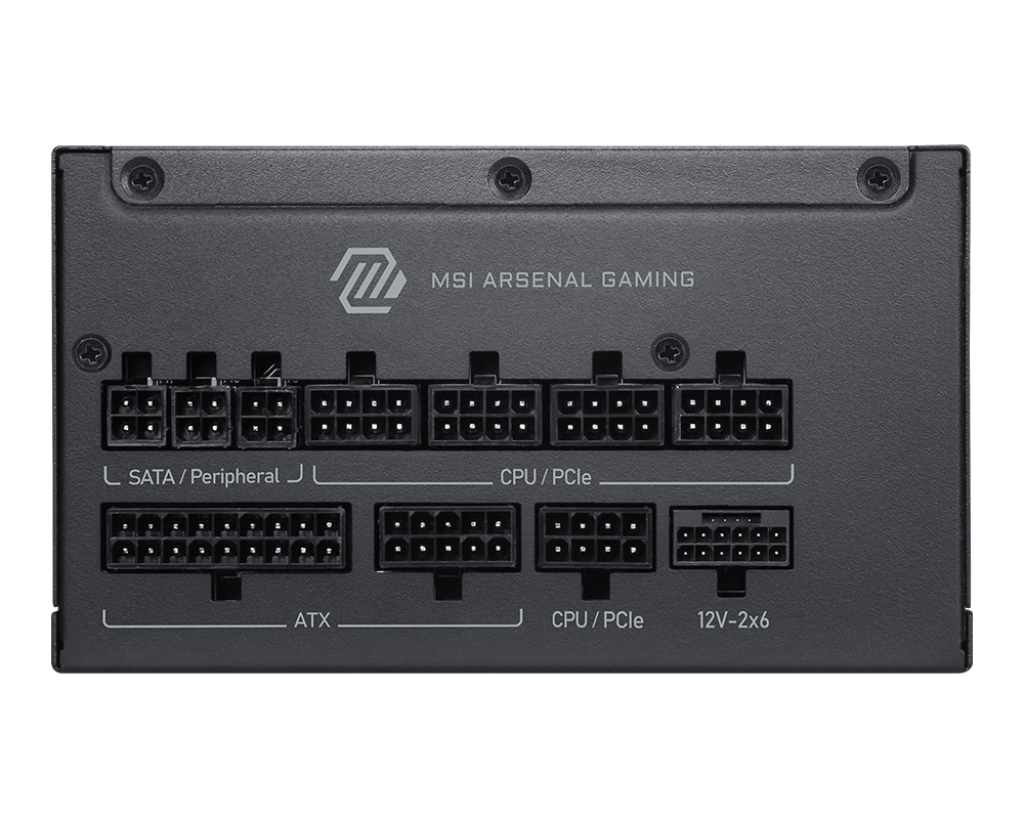

Extensive Connectivity
A wide range of connectivity options provides extensive hardware support.
Connect and upgrade multiple hard drives, SSDs, graphics cards and other components quickly and easily.
- 1 x Motherboard (24 pin)
- 1 x CPU (4+4 pin)
- 1 x CPU (8 pin)
- 1 x PCIe 5 (12+4 pin) / 600W
- 4 x PCIe (6+2 pin)
- 6 x SATA
- 3 x Peripheral (4 pin)
| Efficiency Rating | 80 PLUS Platinum (up to 92%) |
| Modular | Yes (full modular) |
| Fan Bearing | Fluid Dynamic Bearing |
| Power Watt | 1200W |
| Input Voltage | 100-240V~ |
| Input Frequency Range | 50-60Hz |
| ATX (24 pin) | 1 |
| EPS (8 pin) | 1 |
| EPS (4+4 pin) | 1 |
| PCI-E 5.1 (16 pin) | 1 (600W) |
| Fan Size | 135 mm |
| Dimensions (DxWxH) | 150 x 150 x 86mm / 5.9 x 5.9 x 3.4 inches |
| PCI-E (6+2 pin) | 4 |
| PFC Type | Active PFC |
| SATA (15 pin) | 6 |
| Protection | OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO |
| MOLEX (4 pin) | 3 |
