The B550 GAMING WIFI motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series and 3000 Series Processors.
- Form Factor: ATX
- Socket Type: AM4
- Chipset: AMD B550
B550 GAMING WIFI
£99.99
£119.99
-16%
Unit price
/
Unavailable
Incluye regalo
- AMD B550
- ATX
- Max Memory:128GB
- Socket AM4
- 4 slots
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
- Ultra Performance: 10+2+1 Phase Duet Rail Power System (55A DrMOS), 8-pin CPU power connector, Core Boost, Memory Boost, 4-layer PCB with 2oz thickened copper
- Supports DDR4 Memory, up to 4400(OC) MHz
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- High-speed Connectivity: Wi-Fi 5 Solution with 1G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
| Chipset | AMD B550 |
| CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE • 1DPC 1R Max speed 4800 MHz • 1DPC 2R max speed 3866 MHZ • 2DPC 1R max speed 4000 MHZ • 2DPC 2R max speed 3600 MHZ • Dual channel memory architecture • Supports non-ECC UDIMM memory • Supports ECC UDIMM memory (non-ECC mode) • Supports un-buffered memory • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices 6x SATA 6G (Qty) |
| Multi-GPU | AMD MULTI-GPU Support |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) |
| LAN | Realtek® 8111H 1G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 1x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 5 Solution Supports Bluetooth® 5.0 |
| LED FEATURE | 4x EZ Debug LED |

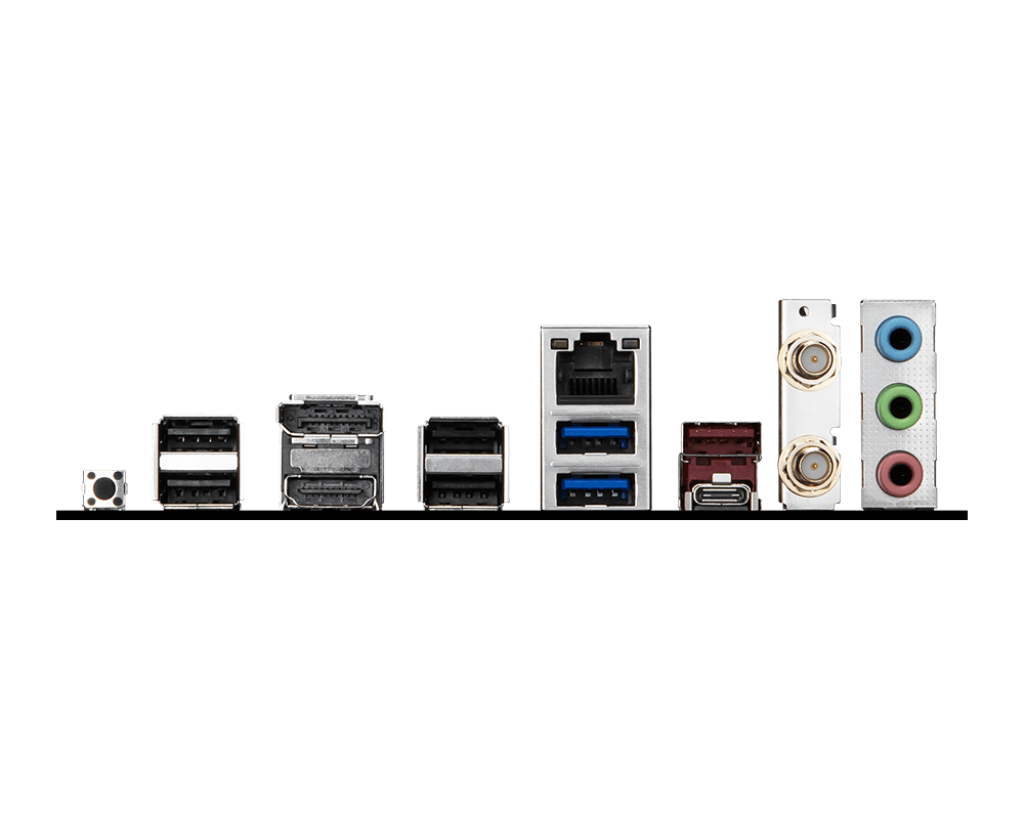

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| BOX CONTENT |  |
| PCB Info | ATX 243.84mmx304.8mm |
Win the Competition
The B550 GAMING WIFI is a gaming oriented ATX motherboard that is constructed with a 10 Duet Rail Power System and AMD B550 chipset which supports AMD Ryzen 5000 series desktop processors, featuring PCIe 4.0, 1G LAN, Wi-Fi 5 and DDR4 that balances both value and premium hardware.
Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series and 3000 Series Processors
Ultra Power - 10 Duet Rail Power System with 55A DrMOS
With exclusive Core Boost technology, a 8 pin power connectors, the B550 GAMING WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 10 Duet Rail Power System (55A DrMOS)
- 2 Phase SOC Power
- 1 Phase APU Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and M.2 Shield Frozr for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR4 Dual Channel (4400+ MHz/OC)*
DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
A-XMP Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 4400+ MHz/OC, supports AMD A-XMP.
Fortified PCIe 4.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
- 1 x PCIe 4.0/3.0 x16 slot (with Steel Armor*)
- 1 x PCIe 4.0/3.0 x4 slot
- 1 x PCIe 3.0 x1 slot
Gen4 M.2 Connector
The B550 GAMING WIFI motherboard features MSI's M.2 slots:
- 1 x Gen4 x4 64Gbps slot (with M.2 Shield Frozr)
- 1 x Gen3 x4 32Gbps slot
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Connectivity
LAN: A Realtek 1Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi: Features the Wi-Fi 5 solution & Bluetooth 5.0 technology.
USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
